Histopathology Image Classification

SSA image Image source

Original paper - A Petri Dish for Histopathology Image Analysis (2021)

Libraries used: torch, torchvision, torchmetrics, timm, matplotlib, numpy, pandas

Concepts: image preprocessing, convolutional neural networks, vision transformers, hyperparameter tuning, early stopping, image augmentation, transfer learning, class balancing, AUC, F1 score


Abstract

Download full report

Code repo

The objective of this project is to classify histopathology images as precancerous or benign. The dataset consists of 3152 histopathology images of colorectal polyps annotated by a board of 7 doctors. The researchers that created the dataset published a paper explaining how they trained ResNet models on this dataset for classification, so I used their hyperparameters as my starting point for training ResNet-18. I found that ResNet-18 overfits, so I applied geometric image augmentations - flipping, rotation, perspective, and affine - to improve generalization. I applied transfer learning, and I also applied different resampling techniques to balance the classes, including pseudo-versions of SMOTE, ADASYN, and TomekLinks. Using the best image augmentation and resampling techniques from my ResNet-18 experiments, I experimented with hyperparameter tuning (learning rate, effective batch size, dropout, weight decay) for a vision transformer model, ViT-Base Patch 16/224. On the test split, I achieved better performance than the research paper with both models:


Research Paper Summary

The paper is well-written, so I’ll only provide a brief overview of the dataset and objective. The authors collected histopathology images (microscopic images of the tissues used in disease analysis) of colorectal polyps and asked a board of 7 doctors to label each image as either hyperplastic polyps (HP) or sessile serrated adenomas (SSA) . HPs are benign, and SSAs are precancerous. The authors then trained various ResNet models on the dataset and reported AUC.

Each sample is a 224x224 color image that is labeled HP or SSA based on the majority vote (out of 7).

The dataset is split into training (2175 samples) and testing (977 samples). The classes are imbalanced. Training contains 71% HP and 29% SSA; testing contains 63% HP and 37% SSA.

The authors trained each model on the entire training set over 100 epochs. At each epoch, they evaluated AUC on the test set. After training, they take the 5 highest AUCs. They train each model 10 times over 10 random seeds, which gives 50 AUC values. They report the AUC mean and standard deviation. (I didn’t check their code repo; this explanation is based on the paper.)

The authors tried ResNet-18, ResNet-34, ResNet-50, ResNet-101, and ResNet-152, and found that increasing model depth does not improve performance. This aligns with my experimental results - my training results showed that ResNet-18 overfits, so the challenge is to improve generalization.

The authors found that pretraining significantly improves performance. On ResNet-18,

The authors found that removing difficult images (images where the doctors were split 3/7 or 4/7) may improve performance.


Project Summary

Process

  1. Copied the model (ResNet-18) and training hyperparameters (learning rate and scheduler, batch size, optimizer) from the research paper
  2. Split training set into training (80%) and validation (20%), stratified on voting count. I chose holdout validation over cross-validation to experiment more quickly.
  3. Used early stopping on the training process triggered on validation F1 score and loaded the model state from the best epoch
  4. ResNet-18 experiments: image augmentation, removing difficult images, class balancing, and transfer learning
  5. Switched models to ViT-Base Patch 16/224, using the best hyperparameters from the ResNet-18 experiments as the starting point
  6. ViT experiments: learning rate, effective batch size (gradient accumulation), dropout, and weight decay
  7. Tried ensembling with the best ResNet and ViT models
  8. For academic purpose, tried FCNN with 4 fully-connected layers (128 neurons, 64, 32, 1). I chose these layers so the FCNN has roughly the same number of parameters as ResNet-18.


Performance

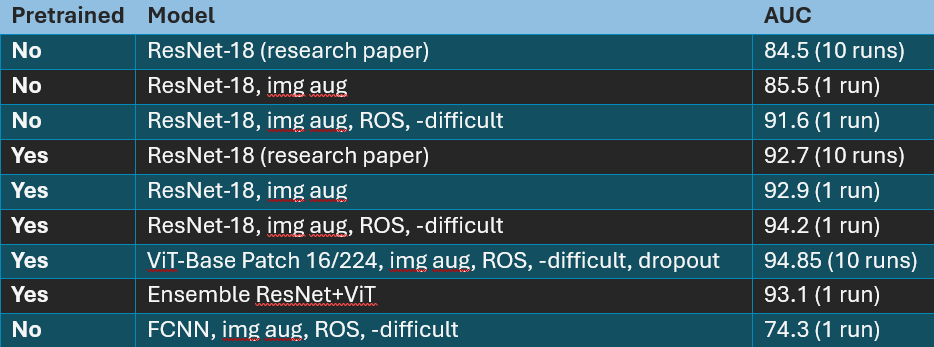

Performance summary: Performance summary table

First, let me explain the abbreviations in the table:


Research Paper Comparison

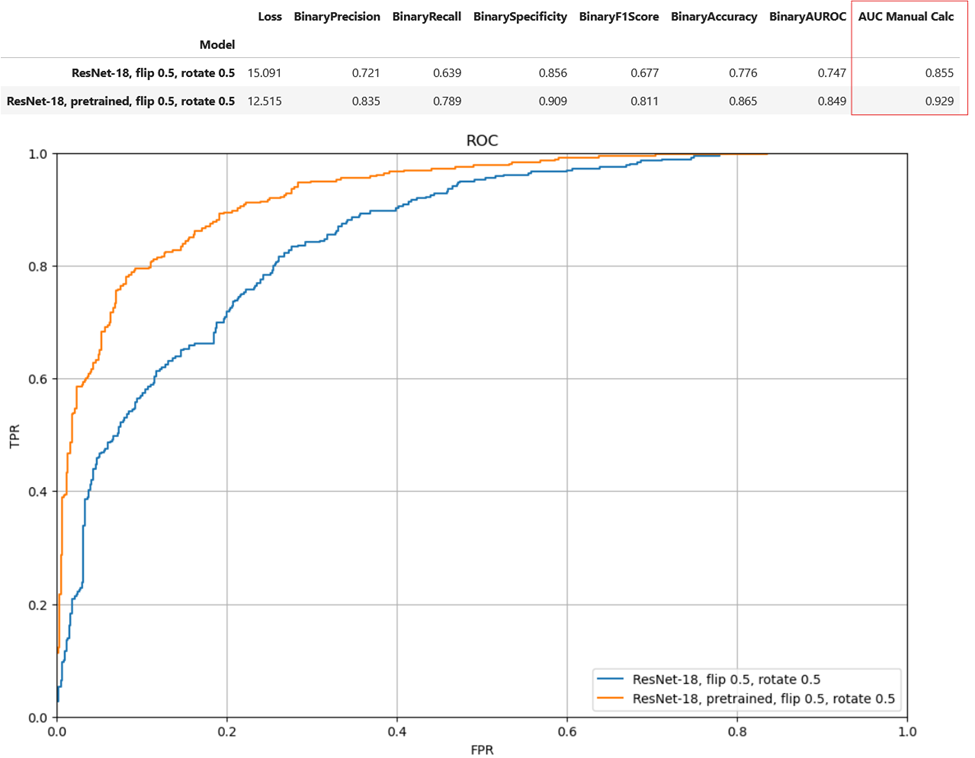

I was able to replicate the research paper performance for both non-pretrained and pretrained ResNet-18. See the rows for ResNet-18, img aug. Performance comparison to paper


ResNet-18 Improvement

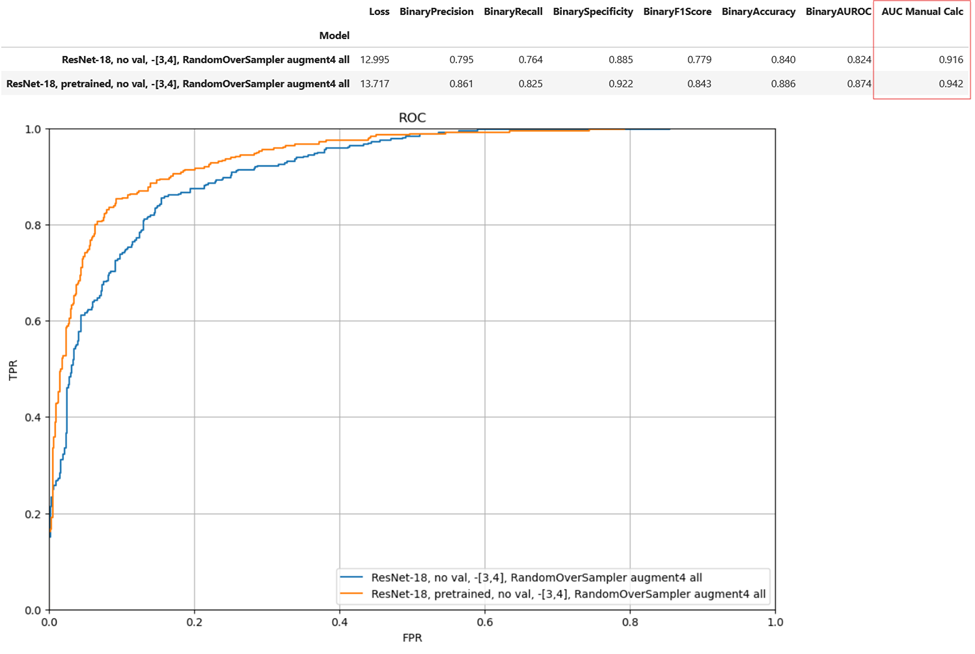

I was able to improve performance over the research paper with additional generalization techniques. See the rows for ResNet-18, img aug, ROS, -difficult. ResNet-18 performance


ViT-Base Patch 16/224 Performance

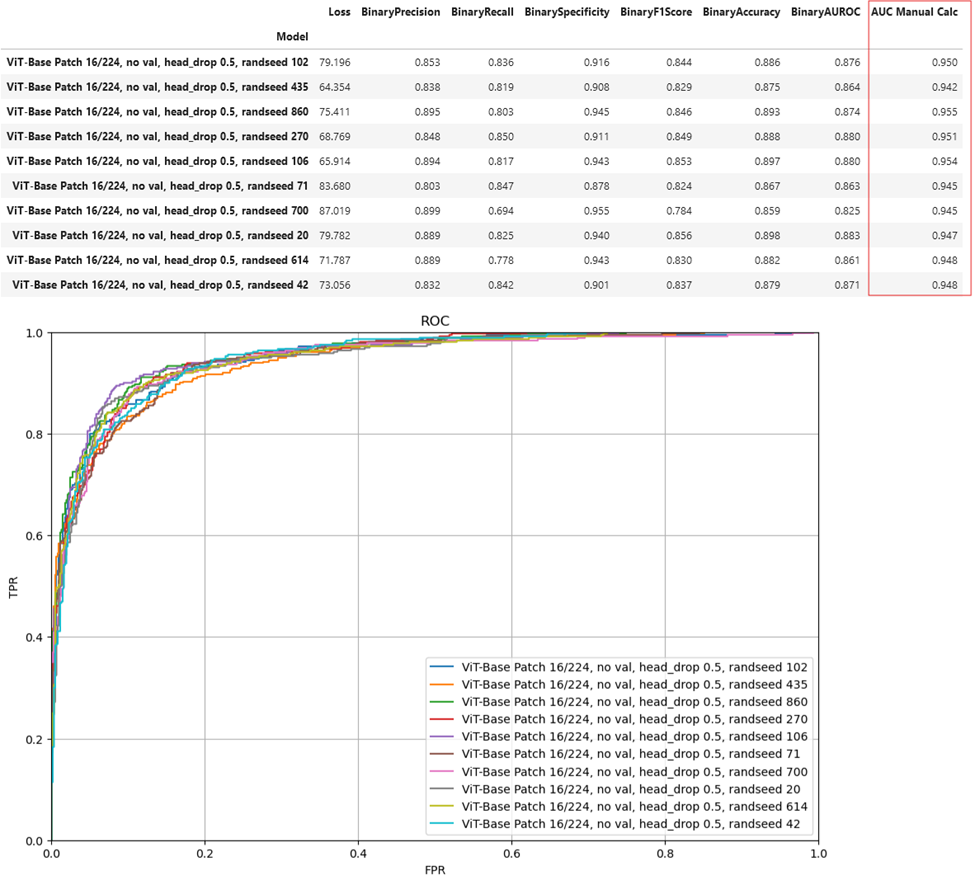

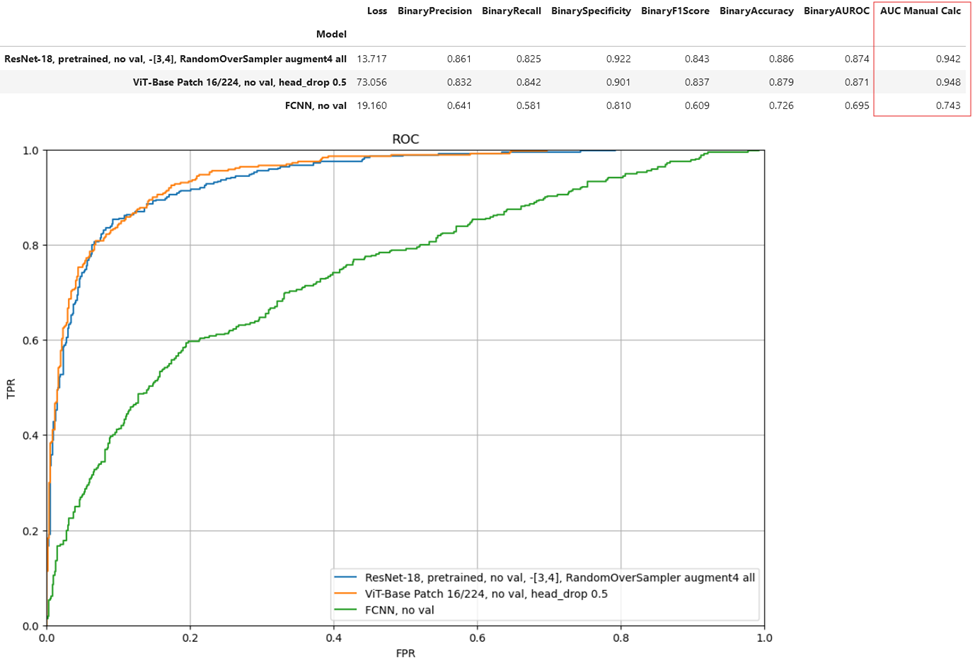

ViT-Base Patch 16/224 performance is similar to ResNet-18. ViT-Base Patch 16/224 performance over 10 random seeds Compare all models
